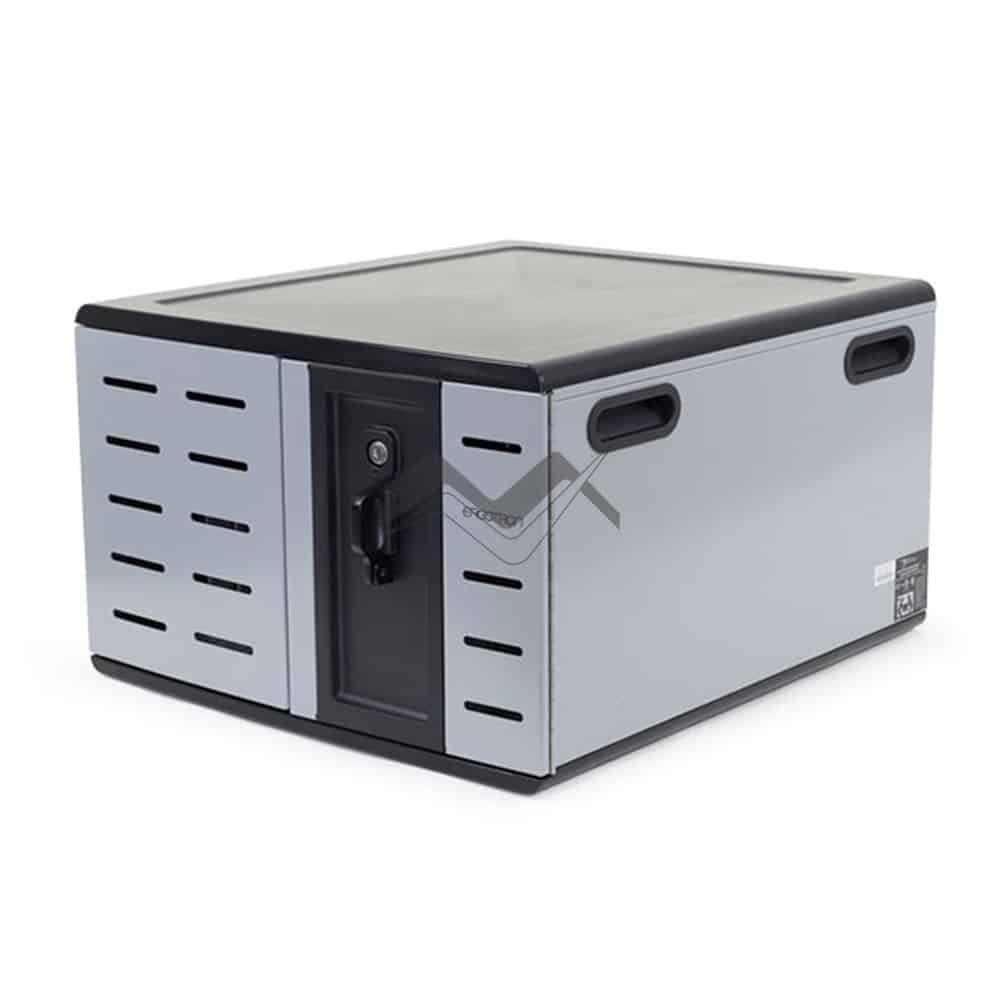

The Zip12 Charging Desktop Cabinet comes with universal and open design to securely charge wide variety of devices, including most tablet, Chromebook™, Ultrabook™, MacBook® and laptop devices with up to a 14.0'' screen. Developed to also accommodate all future devices, this reliable charging cabinet is the only charging cabinet you will ever need to buy. * Order part number in correspondence with regional power system requirements.

BENEFITS

How Does This Universal Charging Storage, Zip12 Charging Desktop Cabinet Benefit You?

More Flexibility

The Zip12 Charging Desktop Cabinet is equipped with adjustable dividers to give you flexibility to move/ remove dividers for your own custom-size capacity option that works for you:

• 12-unit capacity with 1.1ʺ-wide (28 mm) slots and partial shelf for extra storage—ideal for tablets, Chromebooks and Ultrabooks
• 8-unit capacity with 1.9''-wide (48 mm) slots—great for full-size laptops or other devices with large cases
• Remove a divider to create space to install a Wireless Access Point (WAP not included)

For greater flexibility and higher accessibility, this universal charging storage also comes with custom country-specific outlet strips as well as plenty of space to fit oversized wall-plug or brick-style AC adapter.

Increased Efficiency

The Zip12 Charging desktop tablet management is specifically developed to increase efficiency with:

• Removable top panel makes setup and cabling easy
• Convenient On/Off power button so that cabinet can be turned off when not in use
• Cabinets stackable up to two high with hardware to secure units together

Stronger Security

The Zip12 Charging Desktop Cabinet provides high security for all your devices using:

• Rugged steel construction to withstand classroom abuse
• Durable steel doors with a solid three-point mechanism key lock. You can also add your own padlock for additional security

Furthermore, this charging cabinet also comes with ventilation and fans for keeping devices charged in the normal operating temperature.

Specifications

	Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
Zip12 Charging Desktop Cabinet	≤14''	≤5.1 lbs 2.3 kg	-	-	-	-	-



	Zip12 Charging Desktop Cabinet
Part Numbers	North America = DM12-1012-1; Europe = DM12-1012-2; United Kindom/Ireland = DM12-1012-3;Hong Kong/Malaysia/Singapore = DM12-1012-3; Australia/New Zealand = DM12-1012-4; China = DM12-1012-5;Japan = DM12-1012-6
Description	Zip12 Charging Desktop Cabinet (black/silver)
Includes	12 dividers, 2 small device divider stoppers, 6' (1.8 m) country-specific power cord, one country-specific 12-outlet power strip, power on/off switch, security screws and connection hardware, 2 keys
Total Capacity	Up to 12 devices with 1.1"-wide (28 mm) slot; up to 8 devices with 1.9"-wide (48 mm) slot
Maximum Device Dimensions	15.3ʺW x 9.7ʺH (38.9 x 24.6 cm2) including case and cord
Maximum Adapter Dimensions	Brick-style AC adapter = 7ʺH x 3ʺW x 2.2ʺD (17.8 x 7.6 x 5.6 cm3). Wall-Plug-style AC adapter = 2.2ʺW x 4.7ʺL x 3.9ʺD (5.5 x 12 x 10 cm3) including cable strain relief. Cable diameter = 2.6–4.6 mm
Weight Capacity	Maximum individual device weight = 5.1 lbs (2.3 kg); top worksurface = 25 lbs (11.3 kg)
Outlet Strip	Country-specific 12-receptacle outlet strip is designed to work with oversized wall-style and brick-style AC adapters *Use the AC adapters that come with each device. AC adapters are not included
Cooling/ Ventilation	Four (4) 5V DC continuous operation fans keep equipment cool
Country-Specific Power Cord	6ʹ (1.8 m) long
Compliant	RoHS, REACH, WEEE and EU (94/620EC) packaging compliant to ensure clean environment
Power System:	Input/output = 100-240V~, 12-10A, 50/60 Hz
Environment	Temperature Range	Operating: 0° to 30°C (32° to 86°F)
		Storage: -40°C to -60°C (-40° to 140°F)
	Relative Humidity	Operating (maximum): 10 to 90% (non-condensing)
		Storage (maximum): 5% to 95% (non-condensing)
	Altitude	Altitude (maximum): 2000 m (6,562')
Certifications	UL 60950 Safety of Information Technology Equipment, CAN/CSA C22 2 No. 60950; UL 1678 Household, Commercial, and Institutional-Use Carts, Stands, and Entertainment Centers for Use with Audio and/or Video Equipment ICES-003 Issue 4, Class A FCC Part 15 Class RoHS and Reach compliant material used
Product Dimensions	22"W x 24.5"D x 14"H (56 x 62 x 35.6 cm3)
Product Weight	50 lbs (22.7 kg)
Shipping Dimensions	27.2"W x 25.2"D x 17.2"H (69 x 64 x 44 cm3)
Shipping Weight	57.5 lbs (26.1 kg)
Warranty	Ten (10) years mechanical/ workmanship; two (2) years electrical components; one (1) year cables
