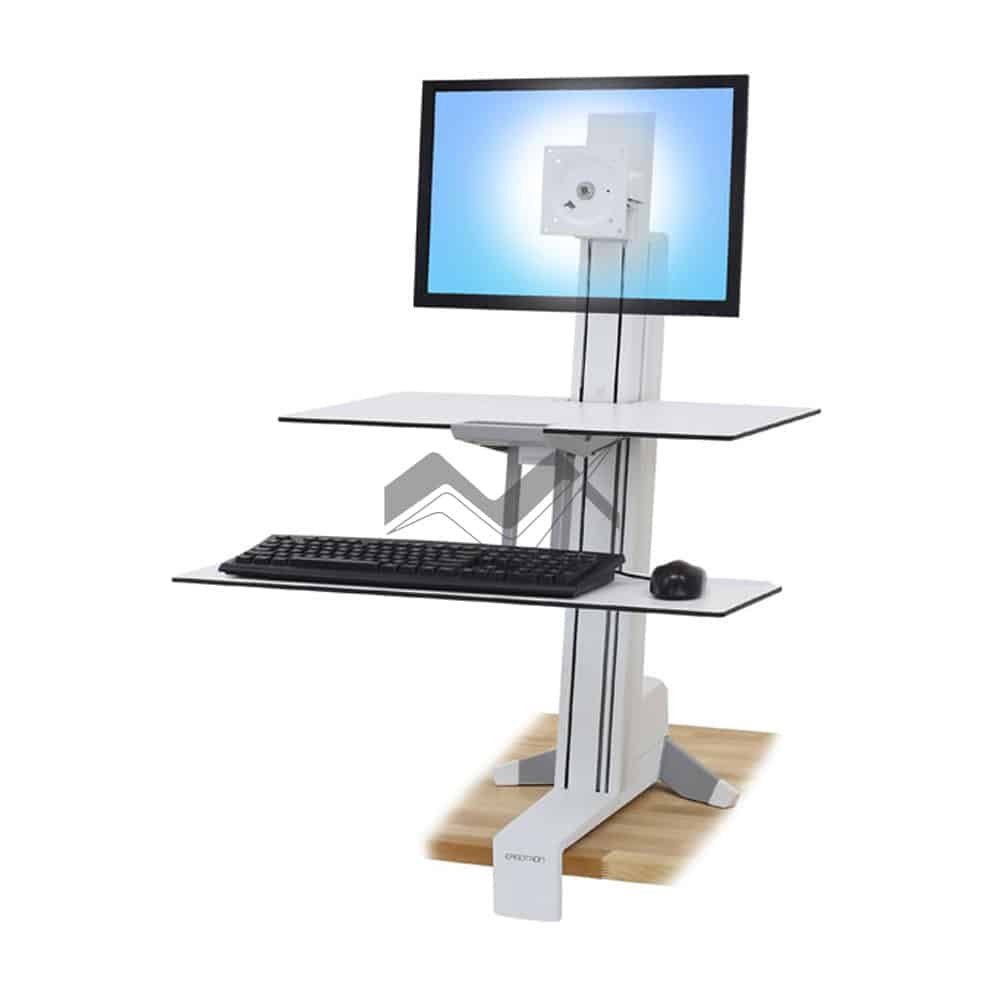

WorkFit-S, Single LD with Worksurface+

With WorkFit-S, Single LD with Worksurface+, you can upgrade any flat surface into an adjustable-height standing desk with the attachment of the WorkFit-S Worksurface, which is specifically designed for comfortable computing in prolonged periods to promote healthy workstyle in daily routine. Being extraordinarily simple to use, this sit-stand computer desk only requires slight push or pull of a hand to raise or lower your keyboard and display in a single motion. Despite its adjustment capability, all the system will remain stable throughout your work routine. *WorkFit-S, Single LD with Worksurface+ can be configured to hold a laptop instead of an LCD display with LX Notebook Tray (50-193-200), which can be ordered separately.

Benefits

How Does This Adjustable Standing Desk, WorkFit-S, Single LD with Worksurface+ Benefit You?

For Computer Users

Premium Ergonomics

With counterbalanced adjustment points using patented Constant Force™ technology, WorkFit-S, Single LD with Worksurface+ allows instantaneous repositioning without any tool:

• Install keyboard tray at your most comfortable focal distance: closer or farther; left, right or centered
• Adjust the height of your monitor and keyboard for unsurpassed ergonomic comfort. For example, in sitting position, you can lower your monitor and keyboard to proper ergonomic position

Increased Fitness

This sit-stand workstation counteracts sedentary workstyle by promoting fitness and comfort as you compute. It facilitates you to switch between standing or sitting position as you work to encourage healthy movement throughout the day, which can:

• reduce potential back and neck pain
• burn more calories
• increase bone density
• create better sleep at night

For IT and Facilities Staff

IT Deployment Friendly

WorkFit-S, Single LD with Worksurface+ converts most work areas into a productive and complete computer workstation in minutes, allowing you to modify existing office spaces or cubes without hiring expensive professional installers.

Liable Cable Management

Ergotron understands the importance of cable routing to provide a safe and clean worksurface. Therefore, it comes with neat cable routing behind the worksurface so that you can comfortably utilize your work space.

Scalable Solution

This affordable sit-stand computer desk is constructed with open-architecture design, thus it is scalable for future computer equipment.

For HR/Risk Management and Company Cost Savings

Proven ROI

Comfortable computing offers provable ROI; it reduces healthcare costs associated with unhealthy computing, such as back and neck pain, the most costly conditions affecting employees according to the 2007 OE Medicine Journal. Furthermore, studies in office ergonomics show productivity increases 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture.

Low Maintenance

The exterior of this desktop sit-stand workstation is composed of aluminium, high-grade plastic and powder coated painted steel, which is highly durable and only requires low maintenance.

Specifications

	Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
WorkFit-S, Single LD with Worksurface+ (white)	≤24”	≤18 lbs 8.2 kg	22.8” 58 cm	30°	-	360° P/L	MIS-D
WorkFit-S, Single HD with Worksurface+	≤30”	≤29 lbs 13.2 kg	22.8” 58 cm	30°	-	90° P/L	MIS-D
WorkFit-S, Single HD with Worksurface+ (white)	≤30”	≤29 lbs 13.2 kg	22.8” 58 cm	30°	-	90° P/L	MIS-D



	WorkFit-S, Single LD with Worksurface+ (white)	WorkFit-S, Single HD with Worksurface+	WorkFit-S, Single HD with Worksurface+ (white)
Part Number	33-350-211	33-351-200	33-351-211
Description	WorkFit-S Sit-Stand Workstation for Single LCD Monitor, LD, with Worksurface and Large Keyboard Tray (white)	WorkFit-S Sit-Stand Workstation for Mid-Size Monitor, HD, with Worksurface and Large Keyboard Tray (black)	WorkFit-S Sit-Stand Workstation for Mid-Size Monitor, HD, with Worksurface and Large Keyboard Tray (white)
Includes	height-adjustment column, desk clamp, LCD pivot, worksurface, large keyboard tray *NOTE: Extra-long cables may be required to span between standing and sitting heights
Weight Capacity	Maximum total load on height-adjustment assembly = 18 lbs (8.2 kg). LCD weight = 6–16 lbs (2.3–7.3 kg), worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 5 lbs (2.3 kg). For proper operation the total weight of components when added together should not exceed 18 lbs (8.2 kg)	Maximum total load on height-adjustment assembly = 29 lbs (13.2 kg). LCD weight = 16–28 lbs (7.3–12.7 kg), worksurface ≤ 5 lbs (2.3 kg), keyboard tray ≤ 5 lbs (2.3 kg). For proper operation the total weight of components when added together should not exceed 29 lbs (13.2 kg)
Lift Range	LCD and keyboard adjust 18" (46 cm) in tandem; LCD adjusts 4.8" (12.2 cm) independently; maximum LCD height adjustment = 22.8" (58 cm). The worksurface restricts the vertical travel range of the LCD lift pivot; height adjustment of LCD without worksurface is 5" (13 cm)
Desk Clamp	Available, attached to surface edge 0.47" to 2.4" (1.2 to 6 cm) thick *NOTE: Because mounting surface materials can vary widely, it is imperative that you make sure mounting surface is strong enough to handle mounted product and equipment
Keyboard Tray Dimension	0.25"H x 27"W x 9"D (6 x 685 x 226 mm3) Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity. Keyboard tray can be installed in nine potential locations relative to the monitor: centered or off-set to left or right; at standard focal distance or 2.2" (5.6 cm) or 4.4" (11.2 cm) farther away
Mounting Standards	VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm2 & 75 x 75 mm2)	VESA FDMI, MIS-D, 75/100, C (hole pattern = 100 x 100 mm2 & 75 x 75 mm2). For displays that use a 200 x 100 mm2, 200 x 200 mm2, 400 x 200 mm2, 400 x 300 mm2 or 400 x 400 mm2 hole pattern, the VESA Bracket Adaptor Kit (97-759) can be ordered separately
Compliant	This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
Worksurface Dimensions	0.25"H x 23"W x 15"D (6 x 585 x 380 mm3)
Shipping Dimensions	8"H x 23"W x 44"D (20 x 58 x 115 cm3)
Shipping Weight	44 lbs (20 kg)
Warranty	Five (5) years
