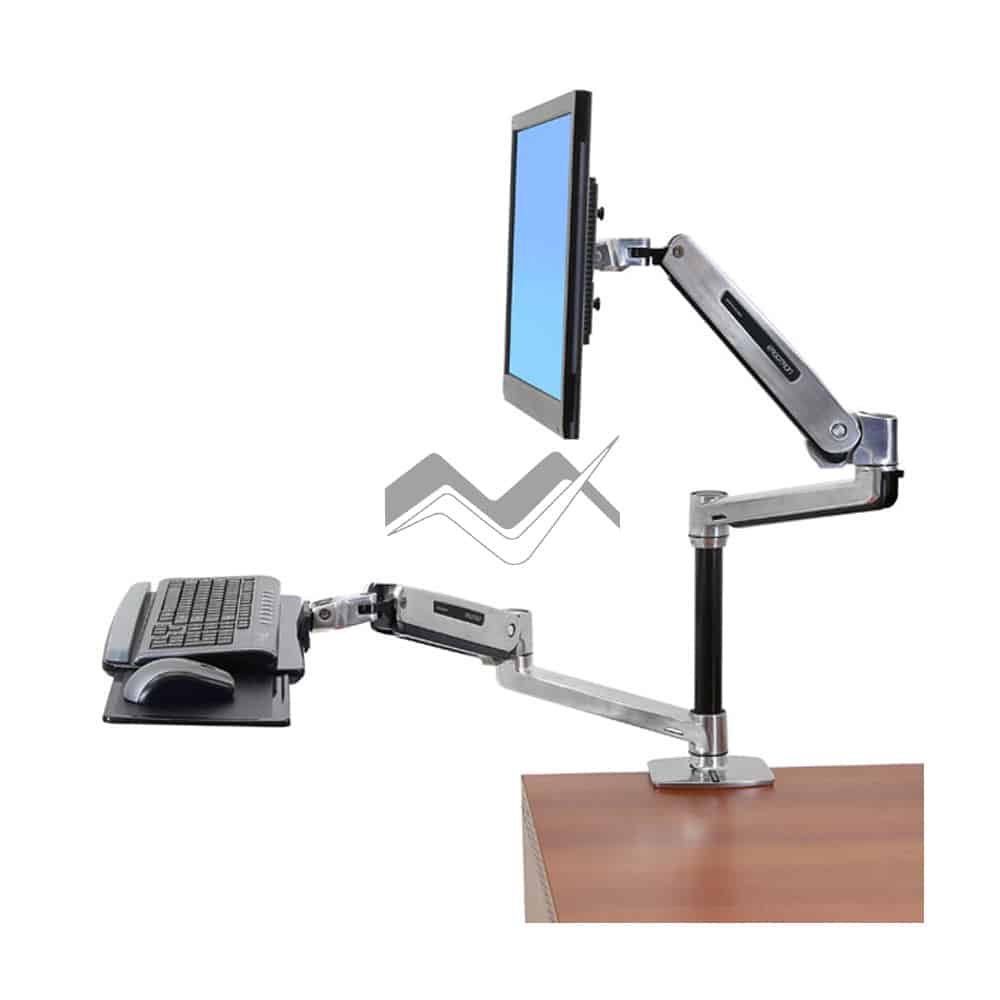

WorkFit-LX, Sit-Stand Desk Mount System

WorkFit-LX, Sit-Stand Desk Mount System is a standing desk system that provides you with complete control over monitor and keyboard positioning. With modular and flexible design, it allows you to configure a system to suit your specific requirements for personalized ergonomic comfort. The unparalleled range of adjustment of this sit-stand desk mount includes 20” (51 cm) of height adjustment and 62“(157 cm) side-to-side motion, facilitating ergonomic comfort in standing or sitting position.

Benefits

How Does WorkFit-LX, Sit-Stand Desk Mount System Benefit You?

Flexible Arm

Patented CF™ motion technology provides premium ease-of-use adjustment of focal distance, making it an ideal solution for larger monitors. You can easily extend or retract the arm to  adjust the distance between the keyboard and screen.

Compact Footprint

This affordable computer workstation comes in small footprint, thus it fits in tight spaces including corner desks.

Organized Cable Management

WorkFit-LX, Sit-Stand Desk Mount System features neat cable routing under the arms, out of the way without trespassing onto your workspace.

High Durability

This large surface computer workstation is made of polished aluminum and steel construction with proven durability through Ergotron 's 10,000-cycle motion test.

Specifications

	Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
WorkFit-S, Single LD Sit-Stand Workstation	≤42”	7-25 lbs 3.2-11.3 kg	20” 51 cm	75°	360°	360°	MIS-D/E/F



	WorkFit-LX, Sit-Stand Desk Mount System
Part Number	45-405-026
Description	WorkFit-LX Sit-Stand Desk Mount System (polished aluminum)
Includes	monitor arm, keyboard arm, two extensions, keyboard tray, slide-out mouse tray, desk clamp base, grommet-mount base, 48 cm pole, two pole collars, VESA brackets, wrist rest *NOTE: Extra-long cables may be required to span between standing and sitting heights
Weight Capacity	Monitor arm = 7 to 25 lbs (3.1 to 11.3 kg); keyboard arm ≤ 5 lbs (2.2 kg)
Monitor Adjustment	Monitor tilts 70° up and 5° down
Keyboard Tray Dimensions	Keyboard tray dimensions = 18.3'' x 8.9'' (46 x 23 cm2); position, tray features a back-tilt of 5°; folds upright 90° in storage position
Mouse Tray Dimensions	8'' x 8'' (20 x 20 cm2) Mouse tray slides out to either left or right side, depending on user preference
Mounting Standards	VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm2  & 75 x 75 mm2), MIS-E (hole pattern = 200 x 100 mm2), MIS-F (hole pattern = 200 x 200 mm2 ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm2, 400 x 300 mm2 or 400 x 400 mm2
Desk Clamp	Desk clamp attaches to edge up to 2.5'' (65 mm) thick; grommet mount attaches through hole 0.5'' to 2.5'' (7–65 mm) wide and up to 2.5'' (65 mm) thick. Stability of monitor arm is dependent on stability of desk or table to which system is attached; any bounce in desk or table surface will be transferred to arm
Product Weight	30 lbs (14 kg)
Shipping Dimensions	23.3'' x 19.8'' x 10.3'' (59 x 50 x 26 cm3)
Shipping Weight	35 lbs (16 kg)
Warranty	Five (5) years
