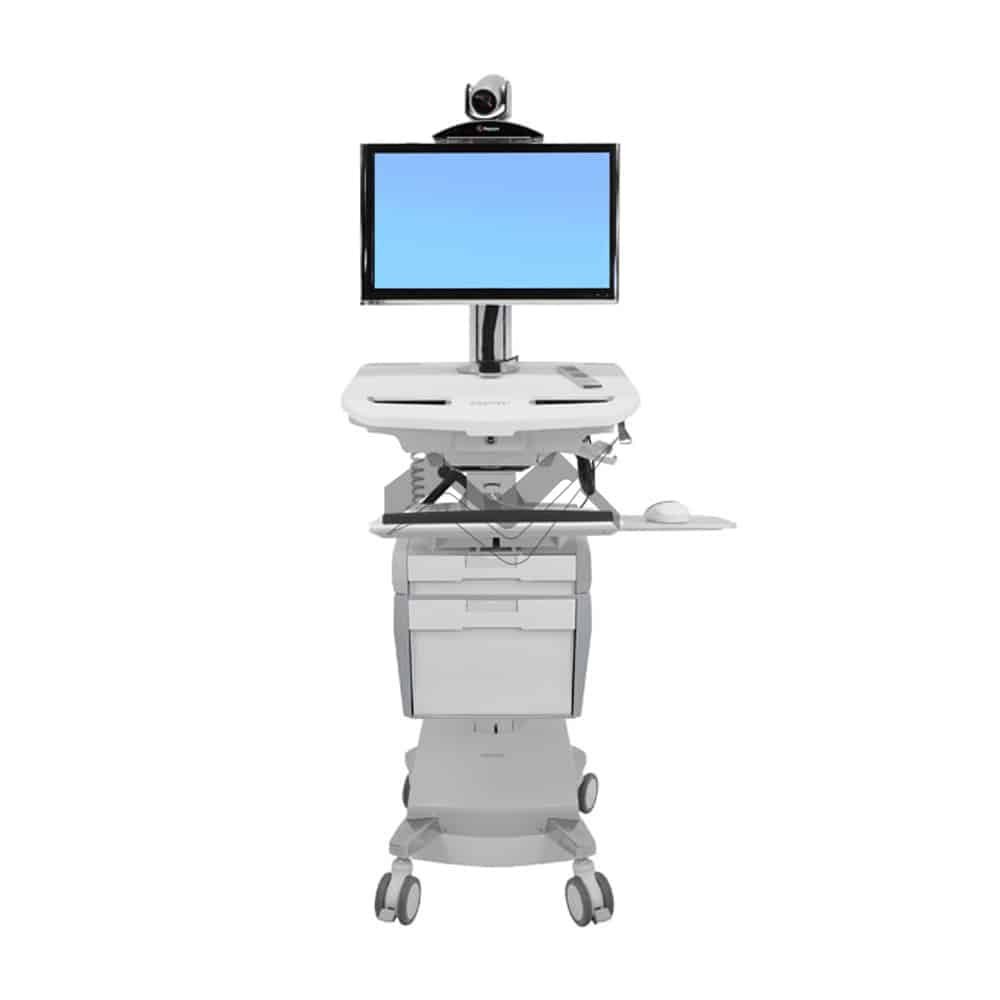

StyleView Telepresence Cart, Powered

Combining the power of video conferencing with the benefits of a StyleView® medical cart, StyleView® Telepresence Cart, Powered expands healthcare access through telepresence, a technology for remote control of machinery or for apparent participation in distant events. For remote delivery of specialized care and timely diagnostics, this ergonomic and affordable mobile healthcare cart comes with dependable fifth-generation power system with easy to replace batteries. Specifically designed based on our years of expertise and service, the lightweight StyleView® Telepresence Cart, Powered for hospital enables you to confidently build a telemedicine platform that meets your needs and budget. *StyleView® Telepresence Cart, Powered is made in the USA by Ergotron. **It is recommended to operate a discharge test right after purchase to determine runtime with computer equipment configured on the cart. Please follow instruction to change batteries by StyleLink battery management software. If StyleLink is not used, it is strongly recommended to conduct a monthly discharge test to determine runtime loss. The batteries must be changed when runtime is less than 50% of original

Benefits

How Does This Ergonomic Sit-stand StyleView® Telepresence Cart Benefit You?

Extended Communication

This sit-stand medical workstation extends your communication with your patients through video conferencing. Using a video or web camera mounted above the monitor, it enables you to connect, consult and collaborate with your patients from a remote location

Adaptable Solutions

StyleView® Telepresence Cart, Powered offers a flexible solution which adapts to your needs, featuring:

• Open-architecture which allows integration of standard computer and mobile communications equipment
• Patented CF™ lift-and-pivot motion technology which minimizes forces required to adjust cart position and monitor height

Safe Drawers

With large lower drawer, sit-stand medical workstation can be configured to accommodate all your telepresence equipment, including critical diagnostic appliances. The drawers come with automatic lock that stores variable-length PINs and electronically controlled access for up to 1,000 users **PINs managed by StyleLink software are limited to 5-digit length and 100 per cart

Smooth Motion

Being ideal for space-constrained areas, this mobile telepresence cart for hospital is equipped with polished rolling casters which let you move the cart smoothly through busy area with hard surface ground

Handy Setup

StyleView® Telepresence Cart, Powered comes with pre-routed cables to provide quicker integration with equipment

Enterprise Management

This sit-stand healthcare cart provides you with enterprise capabilities using FREE StyleLink that enables you to install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN

Improved Accesibility

StyleView® Telepresence Cart, Powered lets you easily access the keyboard while interacting with patients with side-to-side keyboard pans

Easy Maintenance

Complementing its antimicrobial surfaces, StyleView® Telepresence Cart, Powered Easy comes with easy to access components, such as keyboard LEDs, PC boards (including the user interface) for field replacement and service. In addition, it comes with smooth handles, large worksurface, and exterior composed of aluminium, high-grade plastic and zinc-plated steel for improved cleanability

Longer Lifetime

StyleView® Telepresence Cart, Powered has a longer lifetime as proven through Ergotron’s 10,000-cycle motion test to ensure years of trouble-free height adjustment

Reliable Electric Source

This mobile medical cart for hospital minimizes operating cost using autonomous rechargeable AC electrical source which delivers safe, inexpensive and reliable power

Additional Benefits of StyleView® Telepresence Cart,Back-to-Back Monitor, Powered

Adjustable Back-to-Back View

StyleView® Telepresence Cart, Back-to-Back Monitor, Powered enables two back-to-back monitors configuration to provide separate viewing access for caregiver and patient

Additional Benefits of StyleView® Telepresence Cart,Dual Monitor, Powered

Adjustable Side-to-Side View

StyleView® Telepresence Cart, Dual Monitor, Powered enables dual monitor configuration to provide convenient side-to-side pivoting of one display for shared screen viewing

Specifications

	Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
StyleView® Telepresence Cart, Single Monitor, Powered	≤24''	≤39 lbs 17.7 kg	17'' 43 cm	25°	24°	90°	MIS-D
StyleView® Telepresence Cart, Back-to-Back Monitor, Powered	≤24''	≤39 lbs 17.7 kg	17'' 43 cm	25°	24°	90°	MIS-D
StyleView® Telepresence Cart, Dual Monitor, Powered	≤24''	≤45 lbs 20.4 kg	12'' 30 cm	-	180°	360°	MIS-D



	StyleView® Telepresence Cart, Single Monitor, Powered	StyleView® Telepresence Cart, Back-to-Back Monitor, Powered	StyleView® Telepresence Cart, Dual Monitor, Powered
Part Number	SV44-53E1-1	SV44-57E1-1	SV44-56E1-1
Description	StyleView Telepresence Cart, Single Monitor, SLA Powered (white, grey and polished aluminium)		StyleView Telepresence Cart, Dual Monitor, SLA Powered (white, grey and polished aluminium)
Height Adjustment	LCD and worksurface adjust 12" (30 cm) in tandem; LCD Pivot adjusts 5" (13 cm) independently; maximum LCD height adjustment = 17" (43 cm)	Front LCD and worksurface adjust 12" (30 cm) in tandem; front LCD Pivot adjusts 5" (13 cm) independently; maximum front LCD height adjustment = 17" (43 cm). Rear LCD is not height adjustable	Front LCD and worksurface adjust 12" (30 cm) in tandem; front LCD Pivot adjusts 5" (13 cm) independently
Tilt and Pan Adjustment	LCD Tilt adjustment range= 25° LCD Pan adjustment range= 24°	Front LCD Tilt adjustment range= 25° Front LCD Pan adjustment range= 24° Rear LCD Pan adjustment range= 180°	180° pan for either right-hand display OR left-hand display (left or right pan is determined at time of installation)
Compatibility (for portrait screen orientation)	Widescreen displays ≤ 19"
Keyboard Tray	Available. Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Compliant	EMI limits of FCC Part 15 Class A RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant to ensure clean environment TAA (Trade Agreements Act) compliant Designed to meet guidelines established by the American National Standards Institute for computer use
Safety	The entire cart and its power system are certified to UL and CAN/CSA-C22.2 No. 60601-1:08 for patient and caregiver safety
Power System User Interface	Available, integrated conveniently on the worksurface (includes visual and audible battery status indicator)
Casters	Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability
CPU Lock	Available inside the storage compartment for additional security
Drawer Dividers	Available, allowing compartments to be customized to match your workflow requirements
Lighting	Four (4) amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off *Button for LED lights is located conveniently on worksurface
Rear basket	Rear basket keeps task-related items where they can be quickly accessed
USB Hub	Four-port USB hub
Power Strip	Three-outlet power strip located in the CPU storage compartment
External Power Strip	External four-outlet power strip located on back of cart
Internal Dimensions	Primary top drawer = 2.5"H x 12"W x 10.5"D (63.5 x 305 x 267 mm)—includes dividers to configure up to 16 compartments; large lower drawer: 10"H x 12"W x 10.5"D (254 x 305 x 267 mm); codec holder: 1-3/8" to 3-3/4" (35 to 95 mm) wide
Wheel-to-Wheel Base Dimensions	15.5" x 17" (394 x 432 mm)
Worksurface Dimensions	22.4"W x 19.75"D (567 x 502 mm)
Mounting Standards	VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
VAC	VAC: 120V/60Hz	VAC: 120V/60Hz	VAC: 120V/60Hz
Grounded Plug	NEMA 5-15P Hospital Grade
Power System	66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics
Shipping Dimensions	24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
Shipping Weight	212 lbs (96.2 kg); actual cart weight = 177 lbs (80.3 kg)	217 lbs (97.5 kg); actual cart weight = 180 lbs (81.7 kg)	217 lbs (98.4 kg); actual cart weight = 182 lbs (82.6 kg)
Warranty	Five (5) years for cart’s mechanical components, two (2) years on power module
