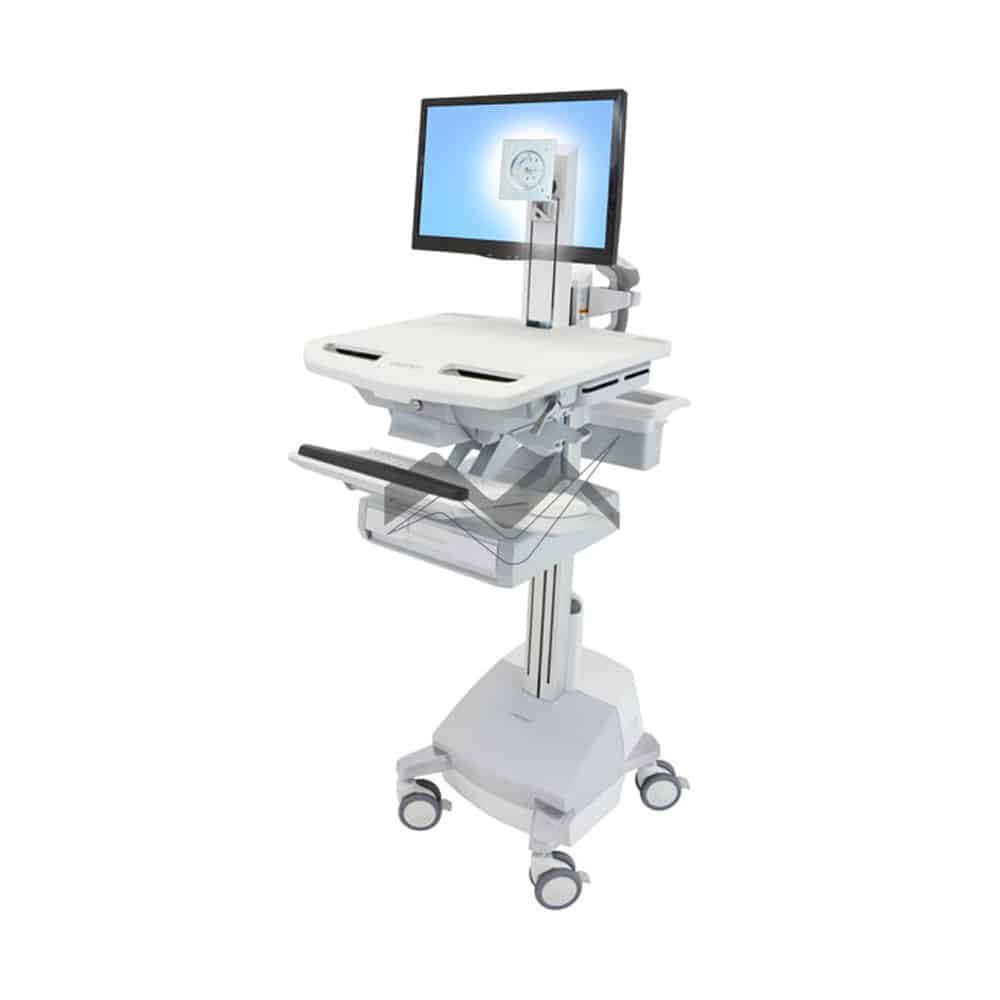

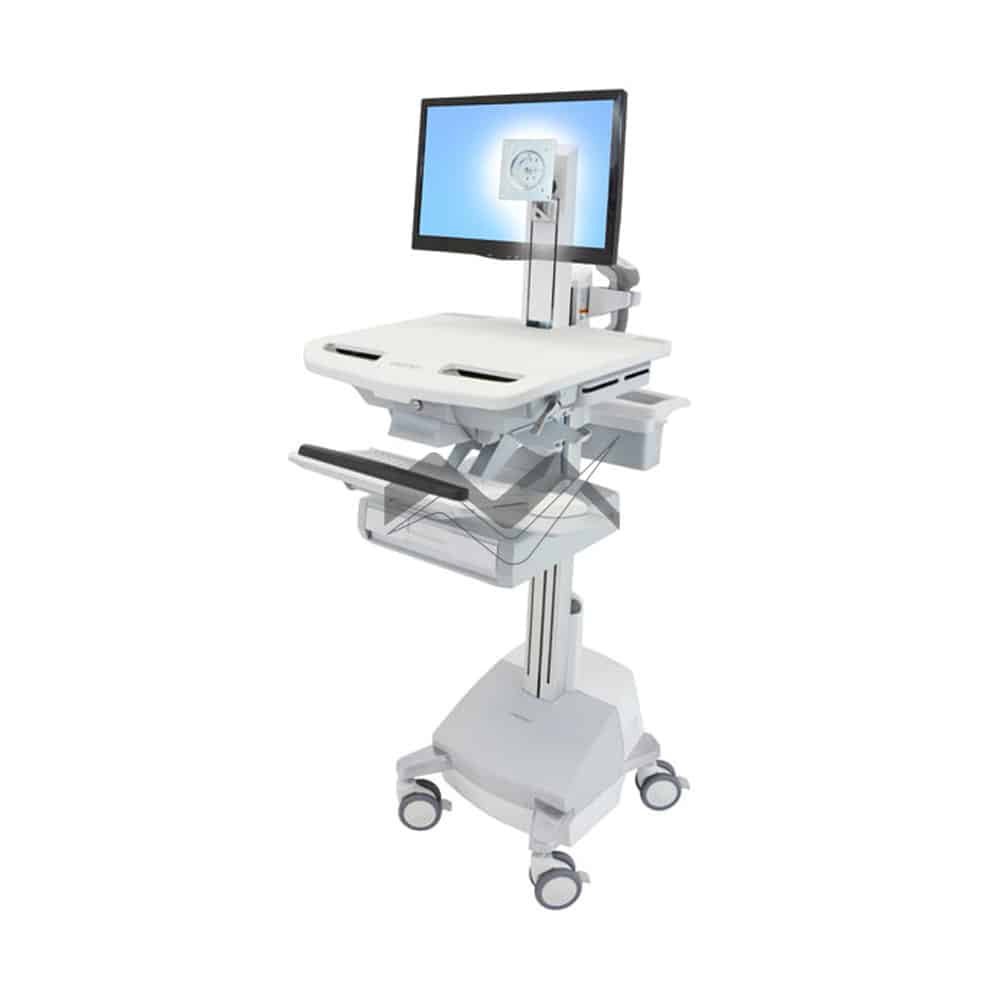

StyleView Cart with LCD Pivot, SLA Powered (with Drawers)

The ergonomic StyleView® Cart with LCD Pivot, SLA Powered for hospital comes with certified fifth-generation power system using easy to replace batteries, keeping the cart always ready to improve your productivity anywhere you go. This affordable mobile healthcare cart is designed with auto-lock drawers configuration of 1, 2 , 4, 6, or 9 drawers for a secure medication management at the point-of-care. In addition to automatic lock, the drawer system also supports “Pharmacy mode,'' allowing all drawers to be unlocked simultaneously to facilitate efficient stocking of medication. Furthermore, this lightweight medical cart for hospital also features independent screen positioning and adjustable back-tilt keyboard tray to provide Users with greater accessibility to the cart while serving patients. * Please order part number according to the regional power system requirements.

Benefits

How Does This Sit-Stand StyleView® LCD Cart with LCD Pivot, SLA Powered Benefit You?

Locked Supplies

This ergonomic LCD cart provides auto-locking drawer to store medication supply on the go. These drawers comes with security system which stores variable-length PINs for up to 1,000 users with StyleLink software (100 users without StyleLink)

Integrated Power Management

StyleView® Cart with LCD Pivot, SLA Powered provides FREE StyleLink with complete capabilities to manage StyleView power systems from a remote location across WAN, LAN, or VPN

Simple Installation

This affordable LCD cart workstation comes with  neatly routed cables to simplify and speed up integration process with equipment

Flexible Design

StyleView® Cart with LCD Pivot, SLA Powered is specifically designed with flexible features, including:

• Patented CF™ lift-and-pivot motion technology to allow you adjust casters position, height, LCD tilt and pan in a singe touch
• Adjustable height to accommodate the largest range of nurses and other caregivers with 5'0'' to 6'1'' (152 to 185 cm) tall so that they can work comfortably and productively in a seated as well as standing position
• Additional rows of drawers of up to 5 rows
• Open structure that accommodates any configuration of closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers to ease future hardware upgrades

Greater Maneuverability

StyleView® Hospital Cart with LCD Pivot, SLA Powered is equipped with ultra-smooth gliding casters with greater maneuverability that allows the cart to travel smoothly on rough surface floors across area with limited space

Clean Look

For cleaner and more presentable look, this affordable medical LCD cart comes with unique cable management system which conceals and organizes cords neatly

Simple Maintenance

StyleView® Cart with LCD Pivot, SLA Powered provides easy to access components for a quicker and easier field replacement and maintenance service. In addition, it also promotes infection control by providing antimicrobial surfaces that protect the development of microorganism, keeping the cart

Higher Accessibility

StyleView® Cart with LCD Pivot, SLA Powered allows you to access your cart easily while interacting with patients with a convenient side-to-side keyboard pans

Long Life Time

This healthcare LCD cart for hospital ensures years of excellent sit-to-stand height adjustment by passing Ergotron’s 10,000-cycle motion test

Specifications

	Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
StyleView® Cart with LCD Pivot, SLA Powered, 1 Drawer	≤24''	≤37 lbs16.8 kg	25''63 cm	25°	24°	90° P/L	MIS-D
StyleView® Cart with LCD Pivot, SLA Powered, 2 Drawers	≤24''	≤39 lbs17.7 kg	25''63 cm	25°	24°	90° P/L	MIS-D
StyleView® Cart with LCD Pivot, SLA Powered, 4 Drawers	≤24''	≤38 lbs17.3 kg	25''63 cm	25°	24°	90° P/L	MIS-D
StyleView® Cart with LCD Pivot, SLA Powered, 6 Drawers	≤24''	≤37 lbs16.8 kg	25''63 cm	25°	24°	90° P/L	MIS-D
StyleView® Cart with LCD Pivot, SLA Powered, 9 Drawers	≤24''	≤37 lbs16.8 kg	21''53 cm	25°	24°	90° P/L	MIS-D



Part Numbers	StyleView® Cart with LCD Pivot, SLA Powered, 1 Drawer North America = SV44-1311-1; Europe = SV44-1311-2; United Kingdom/Ireland = SV44-1311-3; Hong Kong/Malaysia/Singapore = SV44-1311-3; Australia/New Zealand = SV44-1311-4; China = SV44-1311-5;Japan = SV44-1311-6; Saudi Arabia (UK standard) = SV44-1311-7; Saudi Arabia (EU standard) = SV44-1311-8; India = SV44-1311-B StyleView® Cart with LCD Pivot, SLA Powered, 2 Drawers North America = SV44-1321-1; Europe = SV44-1321-2; United Kingdom/Ireland = SV44-1321-3; Hong Kong/Malaysia/Singapore = SV44-1321-3; Australia/New Zealand = SV44-1321-4; China = SV44-1321-5;Japan = SV44-1321-6; Saudi Arabia (UK standard) = SV44-1321-7; Saudi Arabia (EU standard) = SV44-1321-8; India = SV44-1321-B StyleView® Cart with LCD Pivot, SLA Powered, 4 Drawers North America = SV44-1341-1; Europe = SV44-1341-2; United Kingdom/Ireland = SV44-1341-3; Hong Kong/Malaysia/Singapore = SV44-1341-3; Australia/New Zealand = SV44-1341-4; China = SV44-1341-5; Japan = SV44-1341-6; Saudi Arabia (UK standard) = SV44-1341-7; Saudi Arabia (EU standard) = SV44-1341-8; India = SV44-1341-B StyleView® Cart with LCD Pivot, SLA Powered, 6 Drawers North America = SV44-1361-1; Europe = SV44-1361-2; United Kingdom/Ireland = SV44-1361-3; Hong Kong/Malaysia/Singapore = SV44-1361-3; Australia/New Zealand = SV44-1361-4; China = SV44-1361-5;Japan = SV44-1361-6; Saudi Arabia (UK standard) = SV44-1361-7; Saudi Arabia (EU standard) = SV44-1361-8; India = SV44-1361-B StyleView® Cart with LCD Pivot, SLA Powered, 9 DrawersNorth America = SV44-1391-1; Europe = SV44-1391-2; United Kingdom/Ireland = SV44-1391-3; Hong Kong/Malaysia/Singapore = SV44-1391-3; Australia/New Zealand = SV44-1391-4; China = SV44-1391-5; Japan = SV44-1391-6; Saudi Arabia (UK standard) = SV44-1391-7; Saudi Arabia (EU standard) = SV44-1391-8; India = SV44-1391-B
Description	StyleView® Cart with LCD Pivot, SLA Powered, 1 Drawer= StyleView Cart with LCD Pivot, SLA Powered, 1 Drawer (white, grey and polished aluminium) StyleView® Cart with LCD Pivot, SLA Powered, 2 Drawers= StyleView Cart with LCD Pivot, LiFe Powered, 2 Drawers (white, grey and polished aluminium) StyleView® Cart with LCD Pivot, SLA Powered, 4 Drawers= StyleView Cart with LCD Pivot, LiFe Powered, 4 Drawers (white, grey and polished aluminium) StyleView® Cart with LCD Pivot, SLA Powered, 6 Drawers= StyleView Cart with LCD Pivot, LiFe Powered, 6 Drawers (white, grey and polished aluminium)StyleView® Cart with LCD Pivot, SLA Powered, 9 Drawers= StyleView Cart with LCD Pivot, LiFe Powered, 9 Drawers (white, grey and polished aluminium)
Weight Capacity	StyleView® Cart with LCD Pivot, SLA Powered, 1 Drawer Total maximum load on height-adjustment assembly = 37 lbs (16.8 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg); large drawer ≤ 2 lbs (1 kg) StyleView® Cart with LCD Pivot, SLA Powered, 2 Drawers Total maximum load on height-adjustment assembly = 39 lbs (17.7kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg); large drawer ≤ 2 lbs (1 kg) StyleView® Cart with LCD Pivot, SLA Powered, 4 Drawers Total maximum load on height-adjustment assembly = 38 lbs (17.3 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg); large drawer ≤ 2 lbs (1 kg); small drawer ≤ .25 lbs (.1 kg) StyleView® Cart with LCD Pivot, SLA Powered, 6 Drawers Total maximum load on height-adjustment assembly = 37 lbs (16.8 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg); small drawer ≤ .25 lbs (.1 kg) StyleView® Cart with LCD Pivot, SLA Powered, 9 Drawers Total maximum load on height-adjustment assembly = 37 lbs (16.8 kg). This is the sum of the following components: LCD pivot = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg); small drawer ≤ .25 lbs (.1 kg) *Note: Locking the height of the LCD lift pivot changes the weight capacity to ≤ 20 lbs (9.1 kg), allowing it to accommodate heavier displays and all-in-one computers—contact Ergotron for detailsIf the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)
Height Adjustment	StyleView® Cart with LCD Pivot, SLA Powered, 1/2/4/6 Drawers LCD and worksurface adjust 20'' (51 cm) in tandem; LCD adjusts 5'' (13 cm) independently; maximum LCD height adjustment = 25'' (63 cm) StyleView® Cart with LCD Pivot, SLA Powered, 9 Drawers LCD and worksurface adjust 16'' (41 cm) in tandem; LCD adjusts 5'' (13 cm) independently; maximum LCD height adjustment = 21'' (53 cm)
Compatibility (for portrait screen orientation)	Widescreen displays ≤ 19''
Drawers	Cart may be fitted with up to five rows of drawers. Vertical adjustment range is affected by the number of drawer rows: 0–2 rows = 20'' (51 cm); 3 rows = 16'' (41 cm); 4 rows = 12'' (30 cm); 5 rows = 8'' (20 cm)
Keyboard Tray	Available. Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
Compliant	EMI limits of FCC Part 15 Class A RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant to ensure clean environment TAA (Trade Agreements Act) compliant Designed to meet guidelines established by the American National Standards Institute for computer use
Safety	The entire cart and its power system are certified to UL/EN/IEC 60601-1 and CAN/CSA-C22.2 No. 60601-1:08for patient and caregiver safety
Power System User Interface	Available, integrated conveniently on the worksurface (includes visual and audible battery status indicator)
Storage Compartment (for closed notebook, thin client or CPU)	17.75''W x 14.75''D x 4''H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately).This ventilated enclosed storage compartment can be accessed easily with one-hand operation of secure latch with slide-out worksurface. It also comes with heavy-duty locks , keys, and security cable inside to deter CPU theft.
Casters	Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; locking casters ensure lock-in-place stability
CPU Lock	Available inside the storage compartment for additional security
Drawer Dividers	Available, allowing compartments to be customized to match your workflow requirements
Lighting	Four (4) amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off *Button for LED lights is located conveniently on worksurface
Rear Basket	Avaialble tokeep task-related items where they can be quickly accessed
Mounting Slot	Available, universal mounting slot for accessories and equipment
USB Hub	Four-port USB hub
Power Strip	Onboard power strip with three or two receptacles (country dependent)
Wheel-to-Wheel Base Dimensions	15.5'' x 17'' (394 x 432 mm)
Worksurface Dimensions	22.4''W x 19.75''D (567 x 502 mm)
Mounting Standards	VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Power System	66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics
Shipping Dimensions	24.5''W x 34''D x 56''H (62 x 87 x 142 cm)
Shipping Weight	StyleView® Cart with LCD Pivot, SLA Powered, 1 Drawer= 189 lbs (85.7 kg); actual cart weight = 1
