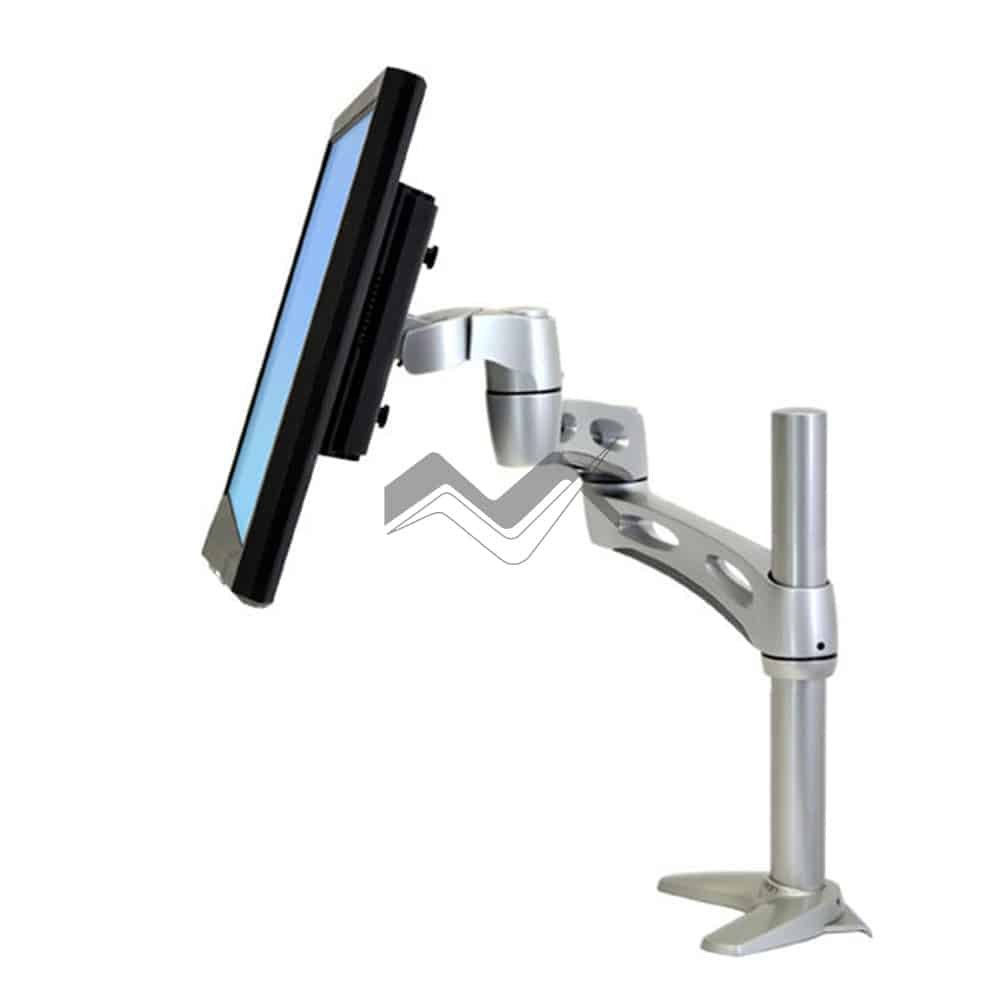

Neo-Flex Extend LCD Arm

Neo-Flex® Extend LCD Arm is an extendable LCD arm mounted on your desktop to place the screen at the right height for you. It allows flexible repositioning of your LCD screen by extending and retracting your LCD, tilting it up and down, and rotating the screen from landscape to portrait, while maintaining the stability of the whole system for incomparable ergonomic comfort.

Benefits

How Does This Flexible Desk Mount LCD Arm, Neo-Flex® Extend LCD Arm Benefit You?

Ergonomic Viewing

Featuring 3-point telescoping motion, Neo-Flex® Extend LCD Arm allows easy positioning of your LCD:

• Extend your LCD out up to 22'' (56cm) for the most comfortable viewing angle and viewing distance while maintaining touchscreen stability
• Rotate your LCD for portrait/landscape viewing then lock the adjusted position

Compact Design

Designed in small footprint with organized cable management, Neo-Flex Extend LCD Arm routes cables under the arm, out of desktop space. Additionally, its sleek design also allows you to push your display aside when not in use, thus it is very suitable for implementation in cramped areas, such as university, hospital, or company.

Flexible Configuration

Neo-Flex® Extend LCD Arm enables you to choose the right configuration for your need; install either one or two of the extension arms or just the LCD pivot.

Durable Composition

This affordable LCD arm is constructed with durable and easy-to-clean exterior composed of aluminium, high-grade plastic and powder-coated painted steel.

Specifications

	Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
Neo-Flex® Extend LCD Arm	≤24”	7-20 lbs 3.1-9.1 kg	-	80°	360°	360° P/L	MIS-D



	Neo-Flex® Extend LCD Arm
Part Number	45-235-194
Description	Neo-Flex Extend LCD Arm (silver)
Includes	two (2) extensions, LCD energy pivot, desk clamp base, grommet mount base
Weight Capacity	7 to 20 lbs (3.2 to 9.1 kg) * Monitor depth greater than 2'' (5 cm) may diminish capacity.
Mounting Options	Desk clamp attaches to surface edge 1/2'' to 1-7/8'' (13 to 48 mm) thick; grommet mount attaches through surface holes 5/16'' to 2'' (8 to 51 mm) wide and up to 2-1/2'' (63 mm) thick
Mounting Standards	VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm2& 75 x 75 mm2)
Height Adjustment	9.5'' (24 cm) variable height adjustment allows arm installation at different heights on pole
Configuration Flexibility	Install one or two arm extensions or only the LCD pivot as needed
Product Weight	8.3 lbs (3.8 kg)
Shipping Dimensions	19.5'' x 11.5'' x 6.5'' (496 x 288 x 164 mm3)
Shipping Weight	9.7 lbs (4.4 kg)
Warranty	Three (3) years
