LX Sit-Stand Wall Mount System

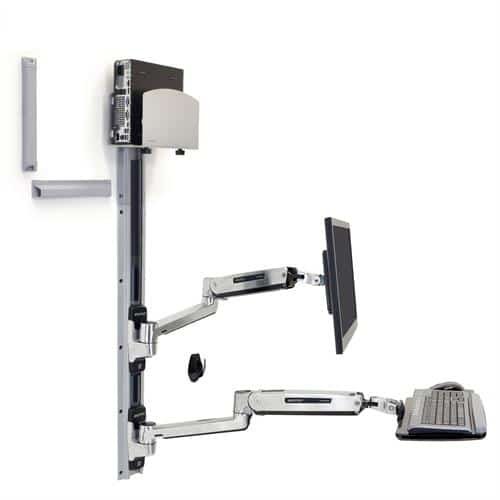

LX Sit-Stand Wall Mount System With Medium Silver CPU Holder. This is a complete solution that accommodates an LCD, keyboard and CPU, creating a sit-stand computer workstation. It is perfect for space-constrained areas: simply fold the keyboard and LCD tight against the wall when not in use.

Benefits

• Creates a complete and compact workstation
• Articulating arms feature full tilt/pan capability and 20'' (51 cm) height adjustment, allowing users to sit or stand while computing
• Extends LCD up to 33'' (84 cm); keyboard tray extends up to 42'' (107 cm); push your display and keyboard out of the way when not in use
• Ideal for space-constrained rooms—keyboard folds to within 6.8'' (17 cm) of wall in storage position. LCD arm folds back to a depth of 5.5'' (14 cm)
• Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry—avoid repetitive-stress injuries while increasing comfort and productivity
• Effortlessly and independently position the LCD and keyboard to the most comfortable viewing and typing position, all while maintaining eye contact with your patient
• Cable management feature routes cables under the arm, out of the way
• Convenient bi-focal viewing: Screen lowers and positions for optimized viewing by users with bi-focal glasses
• Secure installation—locking connections between arm, extension, and base
• Easily change placement of arms on Wall Track by loosening set-screws
• Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment

Specifications

Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
≤ 42''	7–25 lbs* 3.2–11.3 kg	20'' 51 cm	75°†	360°**	360°	MIS-D/E/F‡

• Part Number: 45-358-026
• Description: LX Sit-Stand Wall Mount System with Medium CPU Holder (polished aluminum, silver CPU holder)
• Includes 10'' and 34'' Wall Tracks with (2) black track covers, LX Sit-Stand Wall Mount LCD Arm, LX Sit-Stand Keyboard Arm, wrist rest, mouse
• holder, Medium CPU Holder, two (2) 10'' Cable Channels, mounting for hollow-wall and wall-stud installation
• Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
• * Weight Capacity: display = 7–25 lbs (3.2–11.3 kg); keyboard = 5 lbs (2.2 kg); CPU = 40 lbs (18 kg). Monitor depth may affect weight capacity. Read more
• † Monitor tilts 70° up and 5° down
• ** Rotation Stop on wall-mount base limits turn of extension-based connection to 180°, preventing extension from contacting wall
• Locking connections between arm, extension, and base offer increased theft deterrence and prevent potential disconnections caused by jarring or impacts
• ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
• CPU Size Range: 3-3/8'' to 8'' (9 to 20 cm) wide; CPUs down to 2'' (5 cm) wide can be accommodated by installing the included CPU spacer within the holder
• The base includes theft-deterrent anchor holes for cable locks. CPU Holder includes theft deterrent anchor holes for cable locks and fasteners for locking the holder’s width
• NOTE: Computer systems mounted on this product may require extra long USB, power or video cables in order to span between standing and sitting heights
• Product Weight: 39 lbs (17.8 kg)
• Shipping Dimensions: 36.4'' x 22.3'' x 6.8'' (93 x 57 x 17 cm)
• Shipping Weight: 47.3 lbs (21.5 kg)
• Warranty: Five (5) years
