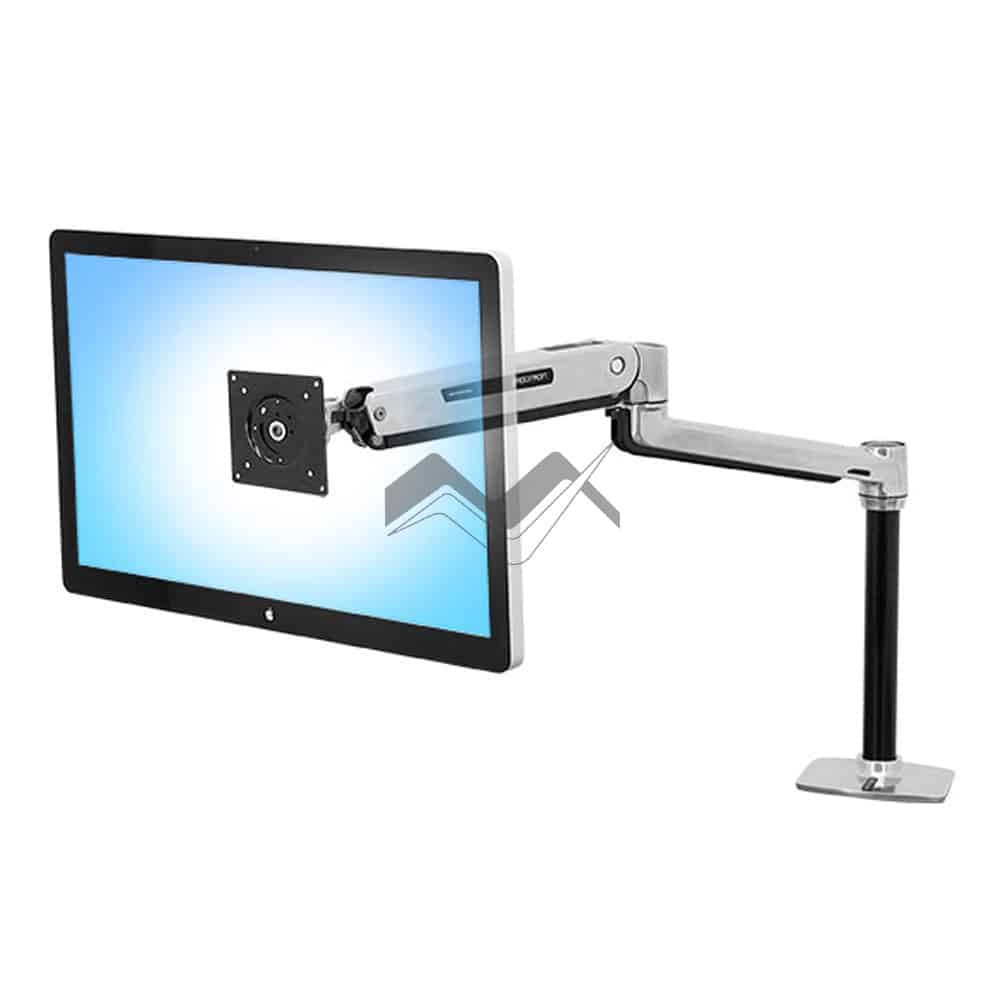

LX Sit-Stand Desk Mount LCD Arm

LX Sit-Stand Desk Mount LCD Arm is a monitor mount with adjustable arm that can be used in a variety of applications, including in hospital, university, or embassy. It allows you to attach small to large display monitor for use within a sit-stand workstation. This sit-stand LCD mount features 20” (51cm) vertical adjustment and 62” (157cm) side-to-side motion to accommodate  sitting or standing posture. *The computer systems mounted on LX Sit-Stand Desk Mount LCD Arm may require extra long USB, power or video cables to span between standing and sitting heights.

Benefits

How Does This Adjustable Monitor Arm, LX Sit-Stand Desk Mount LCD Arm Benefit You?

Flexible Adjustment

Enhance your LCD monitors and TVs with Ergotron’s patented CF™ motion technology to enable these ergonomic adjustments:

• 20”(51cm) height adjustment which allows you to move between sitting and standing positions while you are interacting with the display
• Up to 33'' (84cm) LCD extention to increase viewing comfort and help reduce eye, back, and neck strain

Streamlined Design

The LX Sit-Stand Desk Mount LCD Arm is ideal for cramped spaces as you can push your display out of the way when not in use. It can be tucked 4.5'' (12cm) to the back of the desk in storage position.

Neat Cable Management

This affordable monitor arm comes with cable management clips under the arm to route and hide cords for more organized work space.

Secure Installation

LX Sit-Stand Desk Mount LCD Arm is equipped with locking connections between arm, extension, and base to ensure stable performance, increase theft-deterrence, and prevent potential disconnections caused by jarring or impacts.

High Durability

This LCD mount has succesfully passed Ergotron’s 10,000-cycle motion test to prove years of trouble-free height adjustment.

Extensive Capability

LX Sit-Stand Desk Mount LCD Arm allows you to add an LX Sit-Stand Keyboard Arm to the configuration. This configuraton only needs the pole to attach keyboard arm without the arm’s wall-mount base.

Specifications

	Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
LX Sit-Stand Desk Mount LCD Arm	≤42”	7-25 lbs 3.2-11.3 kg	20” 51 cm	75°	360°	360°	MIS-D/E/F
LX HD Sit-Stand Desk Mount LCD Arm	≤46”	14-30 lbs 6.3-13.6 kg	20” 51 cm	80°	360°	90°	MIS-D/E/F



	LX Sit-Stand Desk Mount LCD Arm	LX HD Sit-Stand Desk Mount LCD Arm
Part Number	45-360-026	45-384-026
Description	LX Sit-Stand Desk Mount LCD Arm (polished aluminum)	LX HD Sit-Stand Desk Mount LCD Arm (polished aluminum)
Includes	LX sit-stand arm, extension, desk clamp base, grommet-mount base, 48 cm pole, VESA brackets	LX HD sit-stand arm, extension, desk clamp base, grommet-mount base, 40 cm pole, VESA brackets
Quality Tested	10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
Weight Capacity	7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity	14 to 30 lbs (6.3 to 13.6 kg). Monitor depth may affect weight capacity
Monitor Tilt	Monitor tilts 70° up and 5° down	Monitor tilts 75° up and 5° down
Mounting Standards	VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm2& 75 x 75 mm2), MIS-E (hole pattern = 200 x 100 mm2), MIS-F (hole pattern = 200 x 200 mm2 ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm2, 400 x 300 mm2 or 400 x 400 mm2
Desk Clamp	Desk clamp attaches to edge up to 2.5" (65 mm) thick; grommet mount attaches through hole 0.5" to 2.5" (7–65 mm) wide and up to 2.5" (65 mm) thick
Product Weight	19.5 lbs (8.9 kg)	17.5 lbs (8 kg)
Shipping Dimensions	25" x 14.75" x 7.5" (64 x 38 x 19 cm3)
Shipping Weight	22 lbs (10 kg)	20 lbs (9.1 kg)
Warranty	Ten (10) years
