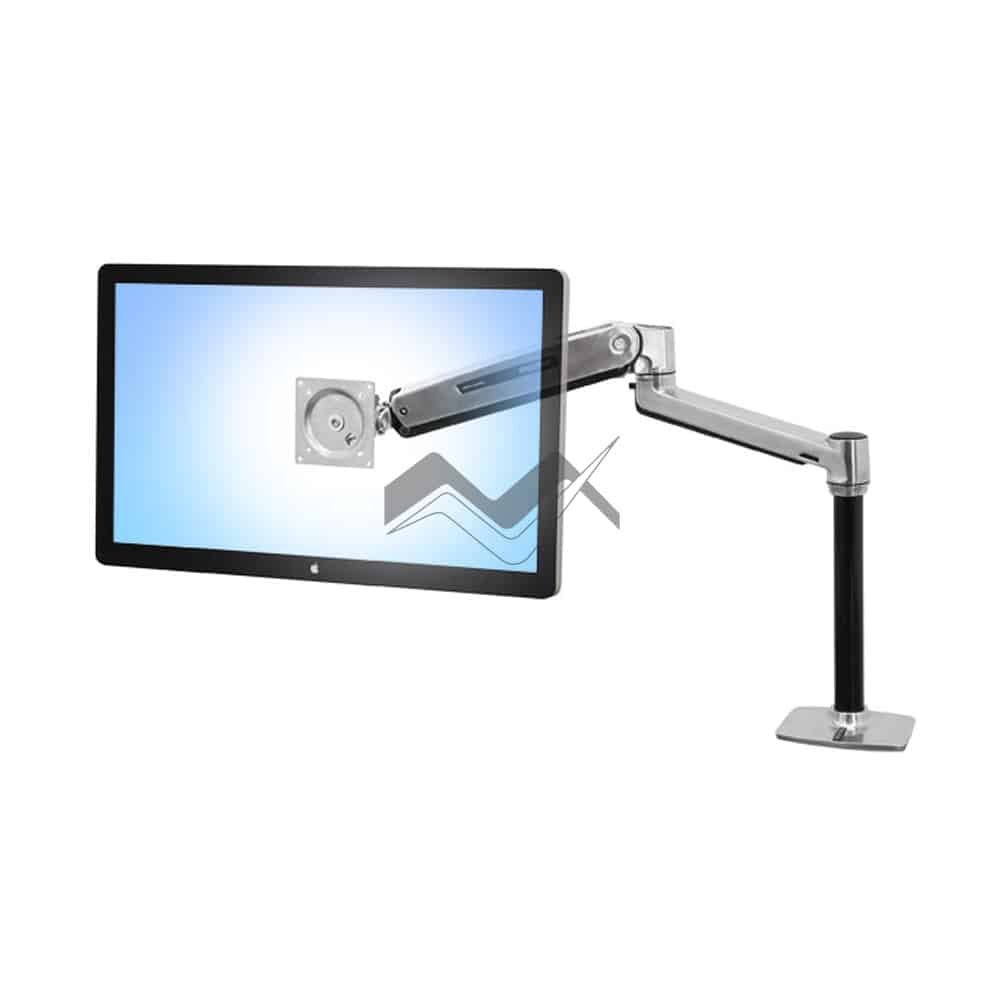

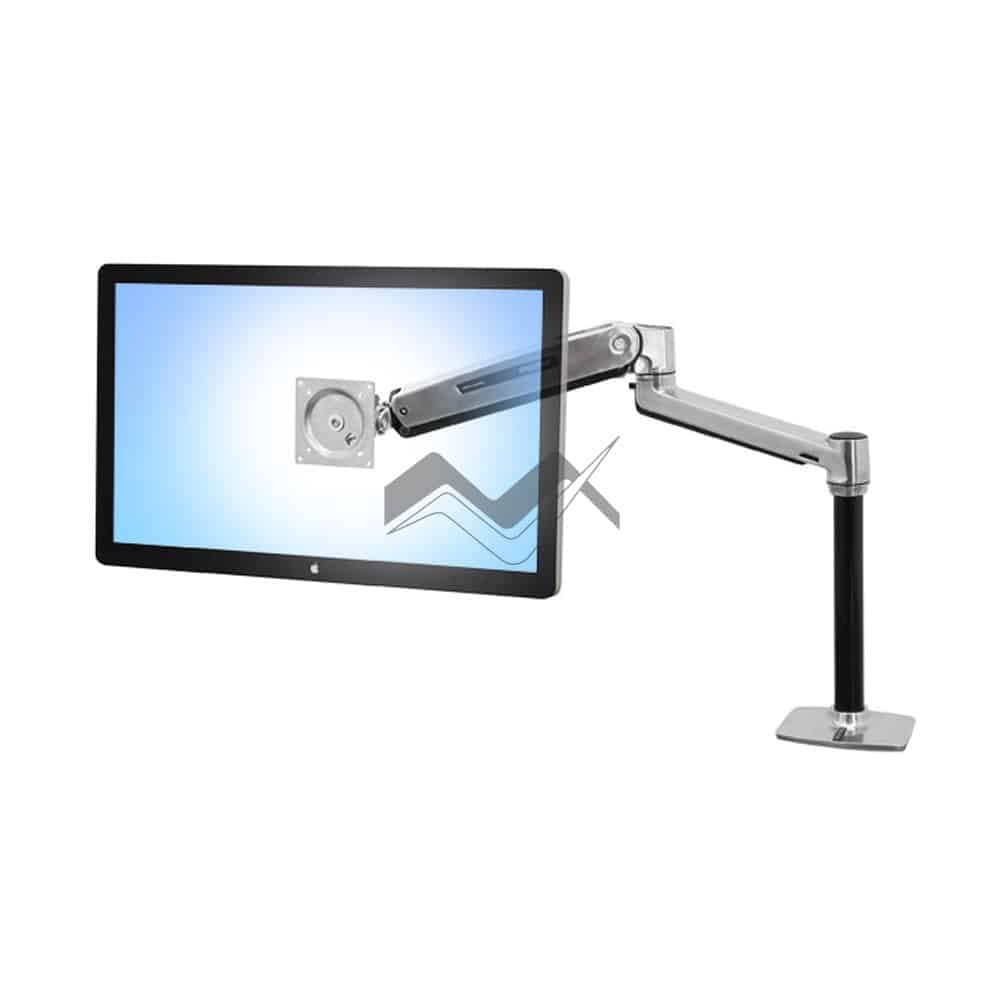

LX HD Sit-Stand Desk Mount Arm with Dual Monitor Kit

Dual Monitor Kit expands the functionality of the LX HD Sit-Stand LCD Arm so it can mount two monitors with 17'' to 24'' screen side by side. This dual monitor desk mount arm is equipped with an integrated handle for easy screen positioning of the arm’s unparalleled range of motion which allows sit-to-stand height adjustment, 360° side-to-side rotation and 33'' (84 cm) extention. You can attach an LX Sit-Stand Keyboard Arm at base of pole while leaving the arm’s wall-mount base unused for a convenient keyboard position.

Benefits

How Does This Adjustable LX HD Sit-Stand LCD Arm with Dual Monitor Kit Benefits You?

Adjustment Technology

LX HD Sit-Stand LCD Arm with Dual Monitor Kit is designed with patented CF™ motion technology which provides premium ease-of-use adjustment:

• 20”(51cm) height range allows users to move between sitting and standing positions while interacting with the display
• 62”(157cm) side-to-side motion to increase viewing comfort and help reduce eye, back and neck strain

Well-Arrange Cable

This dual monitor sit-stand mount comes with cable management clips under the arm used to route and hide cords.

Small Footprint

This compact, affordable LCD arm is ideal in space-constrained spaces. When not in use, it can folded 4.5'' (12cm) to the back side of desk to have more space.

Enhanced Stability

LX HD Sit-Stand LCD Arm with Dual Monitor Kit provides locking connections between arm, extension and base to ensure a stable arm in most ergonomic position.

Specifications

	Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
LX HD Sit-Stand LCD Arm with Dual Monitor Kit	≤24”	8-24 lbs 3.6-10.9 kg	20” 51cm	80°	360°	-	MIS-D



	LX HD Sit-Stand LCD Arm with Dual Monitor Kit
Part Number	Build this configuration by ordering 45-384-026 (LX HD Sit-Stand Desk Mount LCD Arm) and 97-783 (Dual Monitor & Handle Kit)
Description	LX HD Sit-Stand Desk Mount Arm with Dual Monitor Kit (polished aluminum and black)
Outside Width of Monitor	14'' to 24.5'' (35 to 62cm). This range accommodates most 17'' to 24'' displays as well as some displays as large as 26''. If the outside width is less than 14'' (35 cm), a small gap will be present between the two displays. Displays with an outside width greater than 24.5'' (62 cm) are not compatible
Weight Capacity	8–24 lbs (3.6–10.9 kg) total; 4–12 lbs (1.8–5.5kg) per monitor. Recommended: monitors should be equal in weight or +/-1 pound (0.45 kg)
Screen Adjustment	Monitors tilt in tandem 75° up and 5° down. Portrait/landscape rotation must be locked out on LX Arm when Dual Kit’s bow is attached to arm’s VESA interface plate. Monitor brackets attached to Dual Kit’s bow offer 360° rotation for each monitor
Mounting Standards	VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm2 & 75 x 75 mm2)
Warranty	Ten (10) years
