Durable polished aluminum construction! Tested to perform 10 times the expected life-cycle of other competitive brands at roughly half the price. Sleek and streamlined, the LX frees up space and allows positioning of your display for greater productivity. Reposition your LCD with just a touch. Up. Down. Forward. Back. The LX provides unparalleled range of motion.

Benefits

• Increase viewing comfort—help reduce eye, back and neck strain
• Upgrade LCD monitors and TVs with improved ergonomic adjustment
• Patented CF motion technology provides premium ease-of-use display adjustment
• Cable management feature routes cables under the arm, out of the way
• Extends LCD up to 25'' (64 cm); push your display out of the way when not in use
• 13'' (33 cm) height range meets the ergonomic needs of more than nine out of ten adults
• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture, storage shelves or cabinets in space constrained areas
• Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free height adjustment

Improved LX Arm Features & Benefits

• Polished aluminum construction offers greater durability and enhanced aesthetics
• Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
• Snap-fit cap secures interface of arm to extension for greater stability
• New clamp and grommet mount base ensures greater stability of display and arm; also includes theft deterrent anchor holes for cable locks.

Specifications

Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
≤ 27'' ‡	7–20 lbs* 3.1–9.1 kg	13'' 33 cm	75°†	360°	360° P/L	MIS-D



• Part Number: 45-179-195 (black), 45-179-194 (sliver)

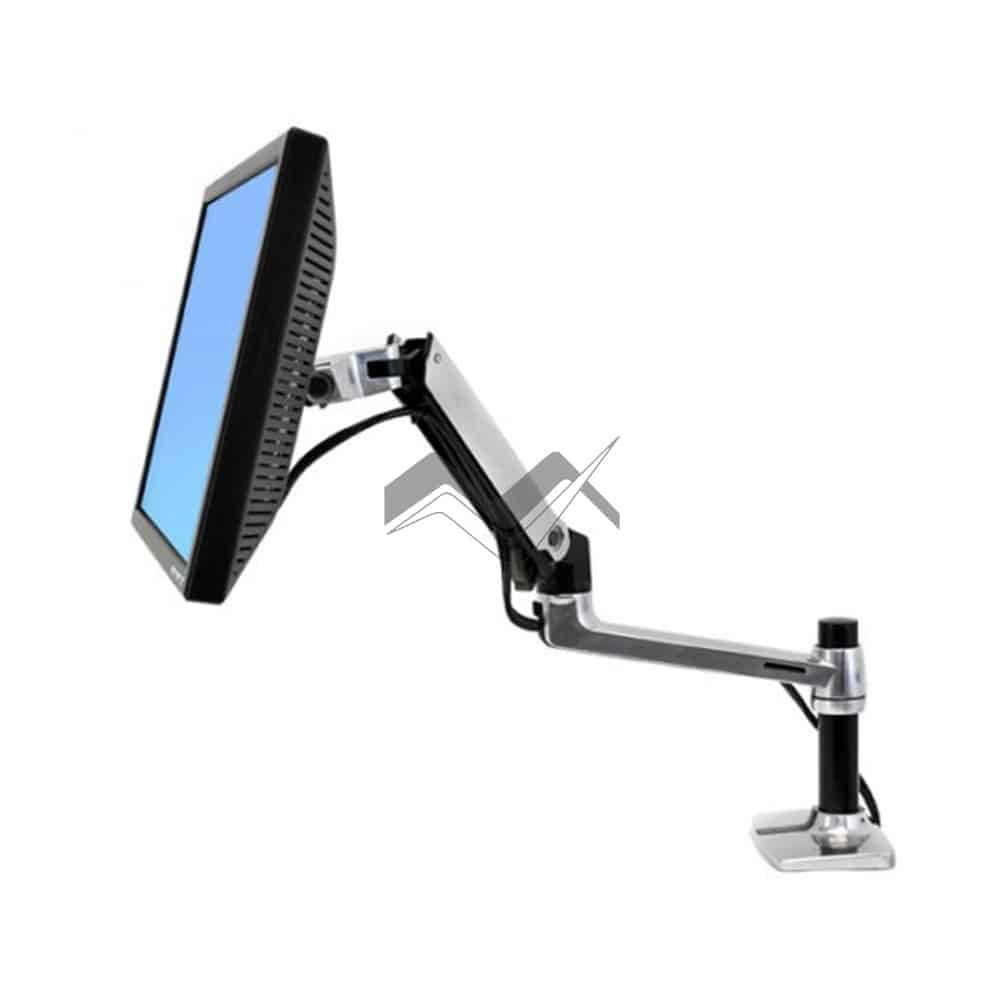

• Description: LX Desk Mount LCD Arm (polished aluminum)
• Includes LX arm, extension, desk clamp and grommet mount bases, 7'' pole
• Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray (50-193-200)
• Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
• Mounting Options: Desk Clamp attaches to surface edge .4'' to 2.4'' (10 to 60 mm) thick; Grommet Mount attaches through surface holes .31'' to 2'' (8 to 50 mm) wide and up to 3'' (76 mm) thick
• Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
• Weight Capacity: 7 to 20 lbs (3.1 to 9.1 kg) * Monitor depth may affect weight capacity.
• † Tilt Range: 70° backward, 5° forward
• Product Weight: 7.8 lbs (3.6 kg)
• Shipping Dimensions: 25.5''H x 11.25''W x 7.25''D (65 x 29 x 18 cm)
• Shipping Weight: 9.75 lbs (4.4 kg)
• Warranty: Five (5) years
