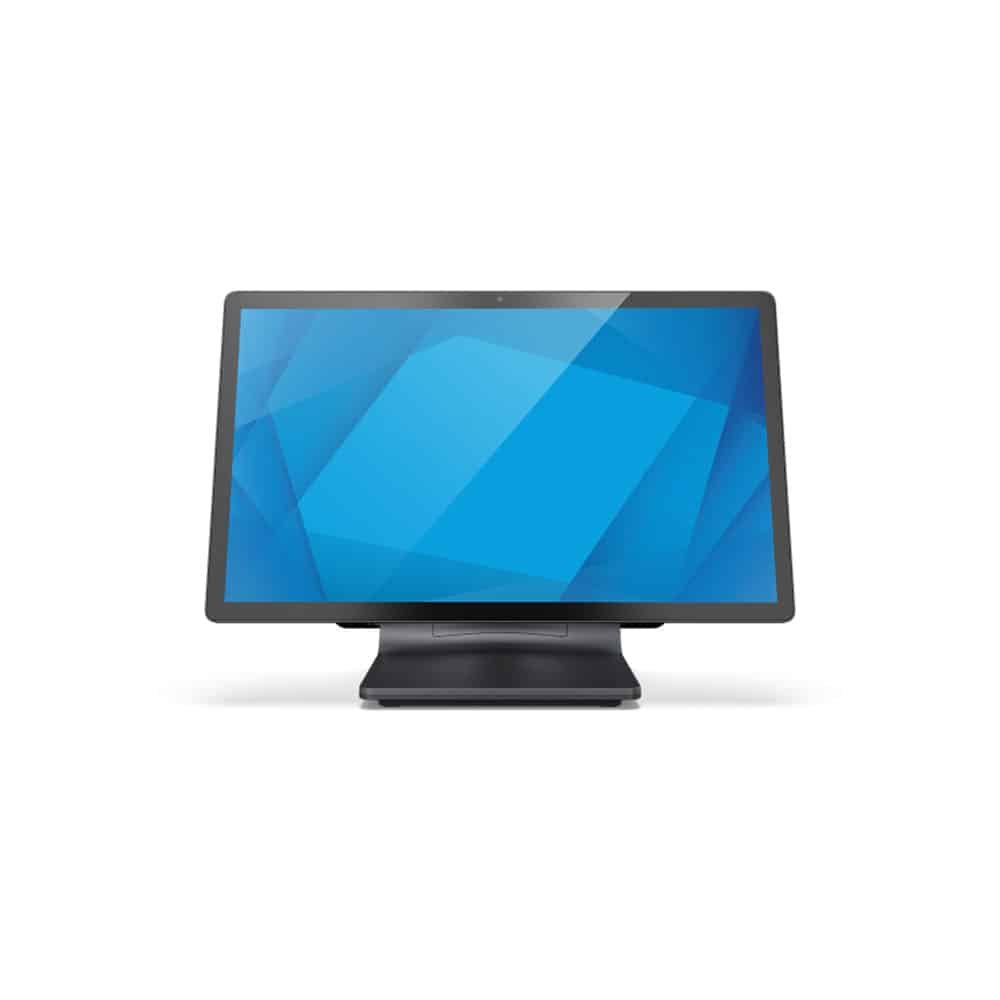

EloPOS Z10 menghadirkan desain minimalis dan berkualitas tinggi dengan arsitektur modularnya. Desain ini berfungsi mengoptimalkan proses checkout, bahkan di ruang terbatas, dengan menghadirkan terminal POS lengkap
[woocommerce_product_retailers]
|
Nomor Ser |
Main display: 15-inch, Standard Model: E391994 15-inch, Value Model: E392786Stand: Z10 POS Stand: E398278 |
|
Varian Enclosure |
Dark Gray Metallic |
|
Teknologi & Kapasitas Sentuhan |
PCAP (TouchPro® Projected Capacitive) - 10 Touch |
|
Prosesor |
Standard Model: Qualcomm Snapdragon SDA660 Value Model: Rockchip RK3399 |
|
Memori (RAM) |
4GB |
| Penyimpanan | Standard Model: 64GB Value Model: 32GB |
| OS |
Android 10 with Google Play Services and EloView content deployment and management |
|
Ukuran Diagonal
|
15.6'' diagonal, Active matrix TFT LCD (LED) |
| Rasio Aspel |
16:9 |
| Area Aktif (mm) |
13.55" x 7.62" / 344 mm x 194 mm |
| Resolusi |
1920 x 1080 @ 60Hz |
| Kedalaman Warna |
8-bit (16.7 million) |
| Kecerahan (tipikal) | Standard Model: LCD Panel: 350 nits TouchPro PCAP: 280 nitsValue Model: LCD Panel: 350 nits TouchPro PCAP: 280 nits |
| Total Waktu Respons (tipikal) |
20 ms |
|
Rasio Kontras |
1000:1 |
|
Viewing Angle |
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total |
| I/O Ports | DC Input 4 x USB-A 3.0 (900mA) RJ45 Ethernet LAN (Gigabit) |
| Webcam | 5MP Max Resolution: 1920x1080 30fps Auto Focus |
| Wireless |
802.11a/b/g/n/ac + Bluetooth 5.0 |
|
Audio Ports |
Standard Model: 2x built-in Digital Microphones Value Model: 1x built-in Analog Microphone |
|
Speakers |
Standard Model: 2x 0.7W Value Model: 2x 1W |
|
Pasokan Daya |
AC input voltage: 100-240 VAC Input frequency: 50-60 Hz |
|
Konsumsi Daya (Tipikal) |
Standard Model: On: 10W Off: 0.4W Sleep: 5WValue Model: On: 11.5W Off: 0.68W Sleep: 4.4W |
| Dimensi | I-Series 4 Slate Standard Model: 14.6" x 8.7" x 0.52" / 370.2 mm x 221.2 mm x 13.1 mm Value Model: 14.6" x 8.74" x 0.55" / 370.8 mm x 221.8 mm x 13.95 mmZ10 Stand: 6.9" x 4.9" x 5.3" / 175 mm x 200.7 mm x 134.6 mm |
| Dimensi Box Pengiriman | I-Series 4 Slate: 17.44" x 12.20" x 6.14" / 443 mm x 310 mm x 156 mm Z10 Stand: 8.19" x 11.8" x 11.2" / 208 mm x 300 mm x 285 mm |
| Berat (Sebelum dikemas) | I-Series 4 Slate: 3.3 lbs / 1.5 kg Z10 POS Stand: 2.4 lbs / 1.1 kg |
| Berat (Setelah dikemas) | I-Series 4 Slate: 7.6 lbs / 3.5 kg Z10 POS Stand: 4.41 lbs / 2.0 kg |
| Suhu saat beroperasi |
0°C to 40°C / 32°F to 104°F |
| Suhu dalam mode penyimpanan | -20°C to 50°C / -4°F to 122°F |
|
Kelembapan |
Operating: 20% to 80% Storage: 5% to 95% |
| Perizinan dan deklarasi peraturan | UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) |
| Supported Countries |
Canada, USA, Australia, Japan, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, Turkey
|
| MTBF |
50,000 hours demonstrated |
| Opsi Mounting |
VESA 75mm |
| Garansi |
2-year |
| Opsi Perpanjangan Layanan | I-Series 4 Slate 3 year OS 360 - Elo P/N: E873133 5 year OS 360 - Elo P/N: E873326 3 year Warranty Coverage – Elo P/N: E819394 4 year Warranty Coverage – Elo P/N: E819598 5 year Warranty Coverage – Elo P/N: E819795 3 year Warranty Coverage + ADP – Elo P/N: E130329 4 year Warranty Coverage + ADP – Elo P/N: E130530 5 year Warranty Coverage + ADP – Elo P/N: E130719 3 year Warranty Coverage + ADP + OS 360 – Elo P/N: E130908 4 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131109 5 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131294 2 year Warranty Coverage + AUR – Elo P/N: E819985 3 year Warranty Coverage + AUR – Elo P/N: E820186 4 year Warranty Coverage + AUR – Elo P/N: E820388 5 year Warranty Coverage + AUR – Elo P/N: E820582 2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490 3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674 4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859 5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053 2 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132245 3 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132432 4 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132627 5 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132811Z10 POS Stand 3 year warranty coverage - Elo P/N: E375367 4 year warranty coverage - Elo P/N: E375573 5 year warranty coverage - Elo P/N: E375771 2 year warranty coverage + AUR - Elo P/N: E375970 3 year warranty coverage + AUR - Elo P/N: E376169 4 year warranty coverage + AUR - Elo P/N: E376362 5 year warranty coverage + AUR - Elo P/N: E376547 |
| OS Support | Complimentary security updates provided for the first three months. Optional extended coverage available with Elo OS 360 package. |
| Sealability | Standard Model: Touchscreen optically bonded to LCD Value Model: Touchscreen sealed to LCD |
| Paket sudah termasuk |
I-Series 4 Slate IO Hub North American Power Cable European Power Cable 1x Power Brick 65W (E153026) Quick Install Guide 4 x M4x6 mm Flathead screws in a plastic bag 4 x M4x6 mm Panhead screws in a plastic bag Z10 POS Stand 4 x M4 screws for attaching the head to the stand 4 x M4x18 screws for attaching an optional 0702L CFD display CFD Mounting Cover Quick Install Guide Please note, the EloPOS Z10 is shipped in two boxes. One for the head and one for the stand. |
| Stands, Mounts & Kits | I/O Hub with 4x USB 3.0 ports, 1x RJ45 Ethernet LAN (Gigabit), 65W power brick, power cables - Elo P/N: E682436 0702L - Elo P/N: E796382 |
