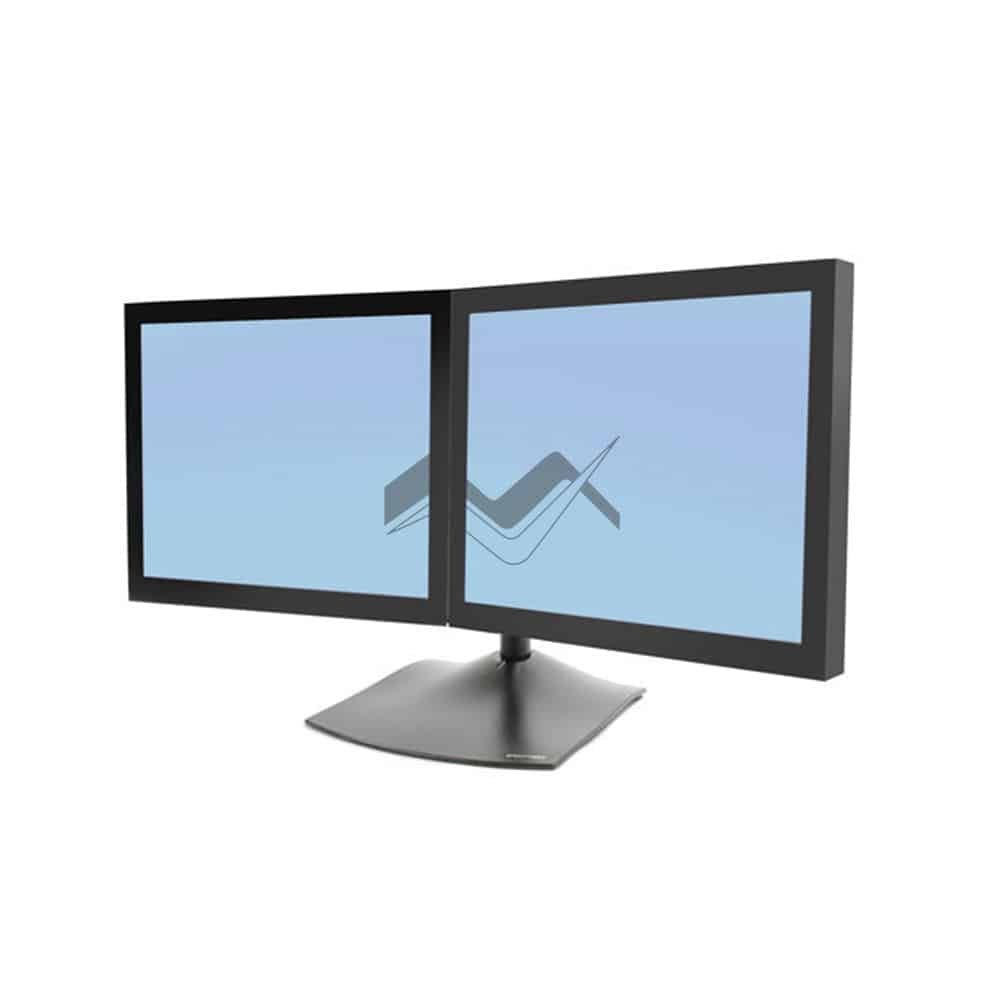

DS100 Dual-Monitor Desk Stand

DS100 Dual-Monitor Desk Stand improves efficiency by suspending two screens on a single base so that you can view multiple application at once. Designed with patented Paraview Technology and height-adjustable bow, this dual display desk stand allows you to easily adjust the height and position of both screens to your most comfortable position. The affordable and adjustable DS100 Dual-Monitor Desk Stand is available in horizontal configuration in DS100 Dual-Monitor Desk Stand, Horizontal or vertical configuration in DS100 Dual-Monitor Desk Stand, Vertical, to provide maximum ergonomic comfort and promote wellness in your daily working routine.

Benefits

How Does This Flexible DS100 Dual-Monitor Desk Stand Benefit You?

Improved Efficiency

This multiple screens desk stand improves efficiency by providing an ergonomic and comfortable multi-screen display stand at an affordable price.

Spacious Desk Space

DS100 Dual-Monitor Desk Stand comes with neat and organized cable management system that routes cables behind display to conserve your desk space. In addition, its low-profile base in small footprint only dominates little space, thus you can have spacious desk space for other working materials.

Wide Compatibility

This dual display stand accommodates multiple LCD monitors with various screen sizes. You only need to slide displays into place untill the screen edges align.

High Durability

DS100 Dual-Monitor Desk Stand is made of durable aluminum and steel construction which creates an extremely stable platform.

More Benefits with DS100 Dual-Monitor Desk Stand, Vertical

Reliable System

DS100 Dual-Monitor Desk Stand, Vertical comes with patented friction system that provides long-life adjustment while maintaining touch-screen stability.

Specifications

	Screen	Capacity	Lift	Tilt	Pan	Rotation	VESA
DS100 Dual-Monitor Desk Stand, Horizontal	≤24”	31 lbs 14 kg	-	-	-	360° P/L	MIS-D
DS100 Dual-Monitor Desk Stand, Vertical	≤27”	23 lbs 10.4 kg	-	180°	180°	360° P/L	MIS-D



	DS100 Dual-Monitor Desk Stand, Horizontal	DS100 Dual-Monitor Desk Stand, Vertical
Part Number	33-322-200	33-091-200
Description	DS100 Dual-Monitor Desk Stand, Horizontal (black)	DS100 Dual-Monitor Desk Stand, Vertical (black)
Weight Capacity	31 lbs (14 kg) per monitor, 62 lbs (28 kg) total	23 lbs (10.4 kg) per pivot; 46 lbs (20.9 kg) total
Includes	base, 14'' pole, Paraview bow, two (2) sliding brackets	base, 14'' pole, Paraview bow, two (2) sliding brackets
Maximum Outside Width of Display	23-1/4'' (59 cm)	-
Mounting Standards	VESA FDMI, MIS-D, 75/100, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Compliant	Meets UL Specification 1678 Tip Test	-
Optimal Viewing Condition	Install displays with 4°-angle off-set (see below): position them upward, inward, outward or downward for optimized viewing conditions	-
Shipping Dimensions	32'' x 14'' x 6.75'' (813 x 356 x 172 mm3)	28'' x 16'' x 7.5'' (711 x 406 x 191 mm3)
Shipping Weight	15 lbs (6.8 kg)	16 lbs (7.3 kg)
Warranty	Five (5) years
